EVO 5-9 Tubular Rear Subframe
Contact Us

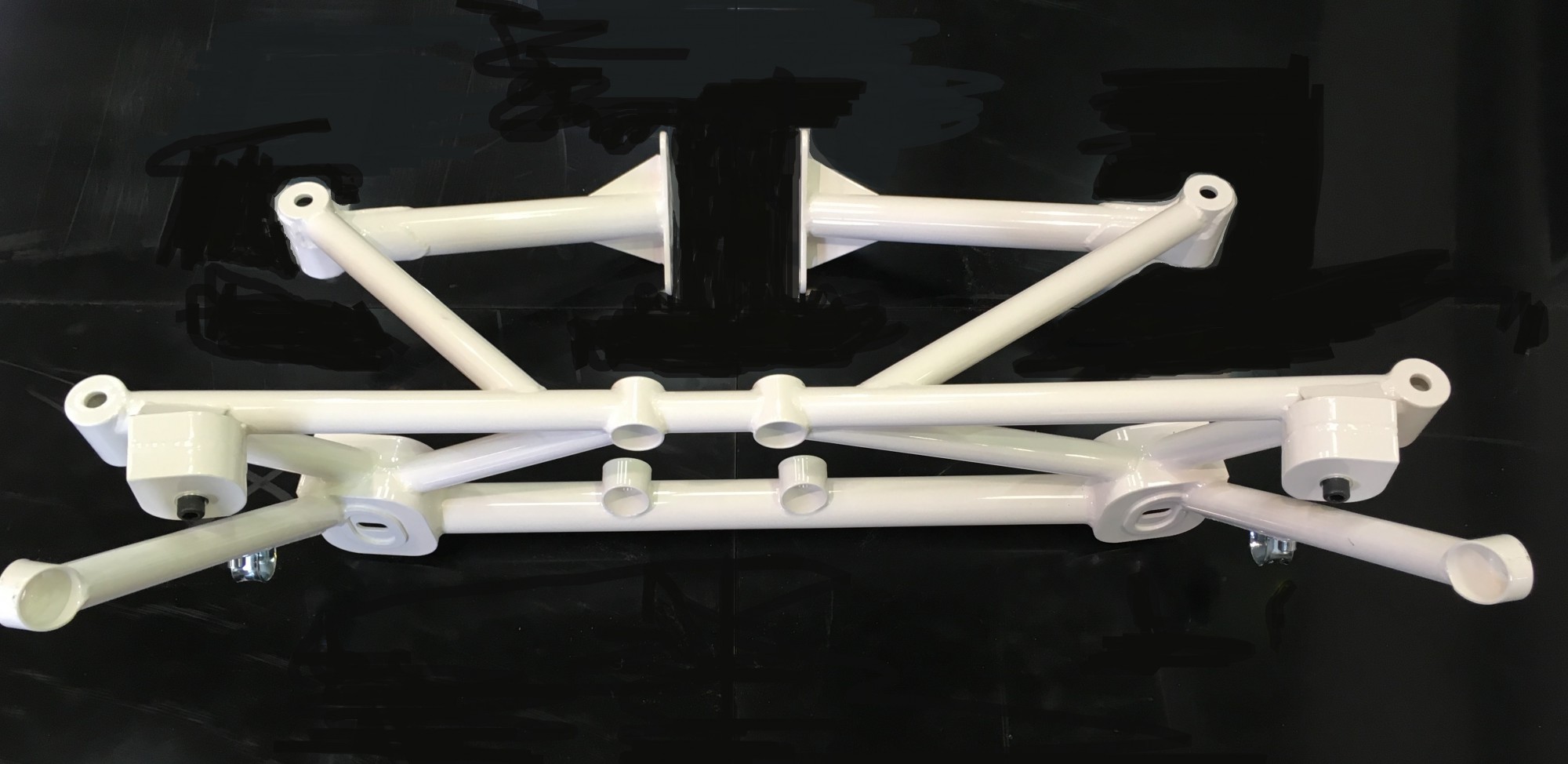

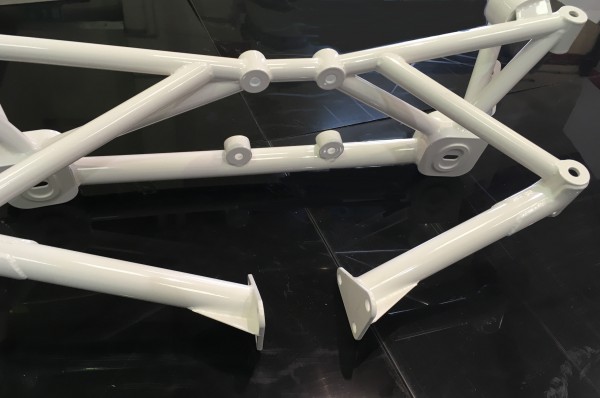

AMS can now offer you a Rear Lightweight Tubular Subframe for your Evo V > IX.
These should not be confused with similar inferior ones currently on the market , these have been fully tested including FEA Test with additional reinforcement made ,manufactured from T45 tubing, C45 milled steel and S355 sheet steel, TIG Welded.
The kit consists of:
Rear Light weight Tubular Subframe
Rear Anti-roll Bar mounts for the subframe
Mountings to the chassis using standard attachment points.
Full 3D CAD designed
Standard OEM lower suspension arm fitment. (enabling standard camber adjustment bolts can be used)
Rear tubular subframes provide saving of 20 kg on the car over same OEM components. The subframe weights 10.25 kg. Designed for RS rear axle.
£ ASK
